B41231B7688M067 | TDK (EPCOS)
Electrolytic capacitor, 6800 µF, 35 V (DC), ±20 %, radial, pitch 10 mm, Ø 25 mm, B41231B7688M067
Order No.: 45D6277
EAN: 4099879875808
MPN:
B41231B7688M067
B41231B7688M67
Unit Price (€ / pc.)
1.9754 € *
Standard delivery time from the manufacturer is: 24 Weeks

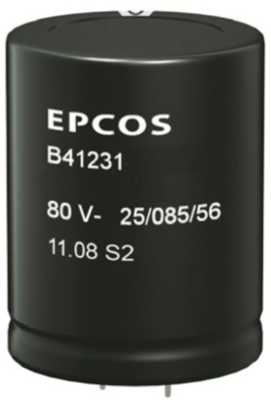

Electrolytic capacitor, B41231B7688M067, EPCOS
Aluminum electrolytic capacitor - Snap-in capacitor
Features
- High ripple current capability
- Useful life of 2000 h at 85 °C
- RoHS-compatible
- High rated capacitance
Applications
- Professional power supplies
- Not for automotive applications unless otherwise specified
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 10 mm | |
| Ripple current | 3 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Version | polar | |
| Connection | snap-in | |
| diameter | 25 mm | |
| Rated voltage (DC) | 35 V | |
| Tolerance | ±20 % | |
| Capacity | 6800 µF | |
| Design | radial | |
| Length | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
| Original Packaging | Carton with 130 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
