B41231A6338M000 | TDK (EPCOS)
Electrolytic capacitor, 3300 µF, 50 V (DC), ±20 %, radial, pitch 10 mm, Ø 22 mm, B41231A6338M000
Not suitable for new designs
Unit Price (€ / pc.)
2.5466 € *
Available: 506 pcs.
Total Price:
5.09 € *
Price list
Quantity
Price per unit*
2 pcs.
2.5466 €
10 pcs.
2.2372 €
50 pcs.
1.9873 €
250 pcs.
1.7850 €
500 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type TDK/Epcos B41231.
Insulated can with snap-in connection, high AC current compatibility, to IEC 60384-4
Rated voltage 50 VDC.

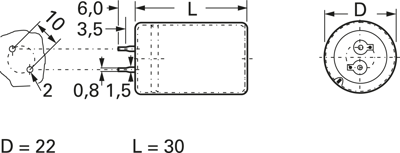

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | snap-in | |
| Rated voltage (DC) | 50 V | |
| Length | 30 mm | |
| Design | radial | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| diameter | 22 mm | |
| Ripple current | 2.97 A | |
| Version | polar | |
| Capacity | 3300 µF | |
| Tolerance | ±20 % | |
| Grid | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 160 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
