B82804A0694A115 | TDK (EPCOS)

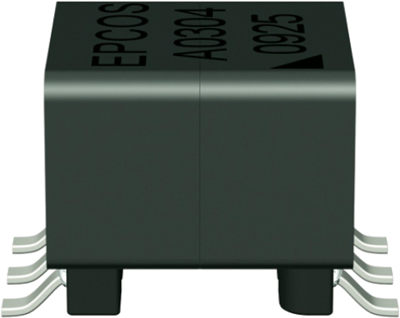

Gate driver transformer, 1.5:1, 690 µH, 0.86 Ω, B82804A0694A115
Unit Price (€ / pc.)
2.7608 € *
Standard delivery time from the manufacturer is: 26 Weeks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Length | 6.7 mm | |
| Winding ratio | 1.5:1 | |
| min. operating temperature | -40 °C | |
| Height | 5.4 mm | |
| Inductance | 690 µH | |
| Width | 6.1 mm | |
| min. frequency | 100 kHz | |
| Design | SMD | |
| DC resistance | 0.86 Ω | |
| Product type | gate driver transformer |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Original Packaging | Reel with 850 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
