B82801C0145A050 | TDK (EPCOS)

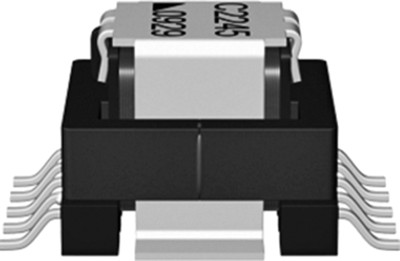

Current measuring transformer, 1:50, 1.4 mH, 4 Ω, B82801C0145A050
Unit Price (€ / pc.)
2.2134 € *
Standard delivery time from the manufacturer is: On Request
SMD current sense transformers, type TDK/Epcos EE 12.6.
Switching mode power supply transformer, with measurable currents of max. 40 A. Dielectric strength. 1500 VAC (50Hz/1.0 s)
Technical specifications
| Product type | current measuring transformer | |
| Winding ratio | 1:50 | |
| Inductance | 1.4 mH | |
| Design | SMD | |
| min. frequency | 50 kHz | |
| max. frequency | 500 kHz | |
| DC resistance | 4 Ω | |
| Length | 14.22 mm | |
| Width | 13.46 mm | |
| Height | 10 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Customs tariff number | 85043180 |
| Country of origin | CN |
| Original Packaging | Reel with 200 pieces |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
