B88269X3350C011 | TDK (EPCOS)
High voltage contactor, 1 pole, 60 A, 1000 VDC, 1 Form A (N/O), coil 24 VDC, internal thread M6, B88269X3350C011
Order No.: 17D0833
MPN:
B88269X3350C011
Unit Price (€ / pc.)
114.7874 € *
Standard delivery time from the manufacturer is: 10 Weeks

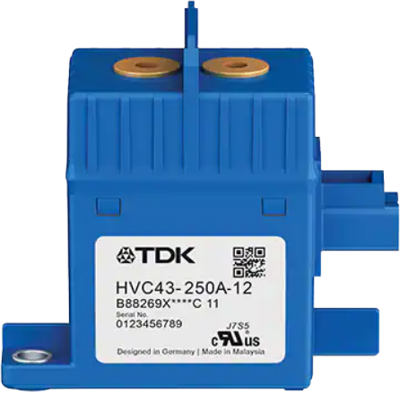

High-voltage contactor, B88269X3350C011, EPCOS
This product has been specially designed to meet the requirements of high-voltage DC switching applications. The optimized hermetically sealed design exhibits excellent reliability performance against harsh environments. The small size and low weight is optimized to serve automotive application as part of battery traction systems.
Features
- Single coil with connector
- No coil termination
- Main terminals without polarity (bi-directional)
- RoHS compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 1000 VDC | |
| Connection | internal thread M6 | |
| Latching switching function | 1 Form A (N/O) | |
| Control Voltage | 24 VDC | |
| Permanent current | 250 A | |
| Assembly | chassis mounting | |
| Pin number | 1 pole | |
| Version | high voltage contactor | |
| Rated current | 60 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
