B88269X3340C011 | TDK (EPCOS)
High voltage contactor, 1 pole, 60 A, 1000 VDC, 1 Form A (N/O), coil 24 VDC, internal thread M6, B88269X3340C011
Order No.: 17D0831
MPN:
B88269X3340C011
Unit Price (€ / pc.)
109.6347 € *
Standard delivery time from the manufacturer is: 10 Weeks

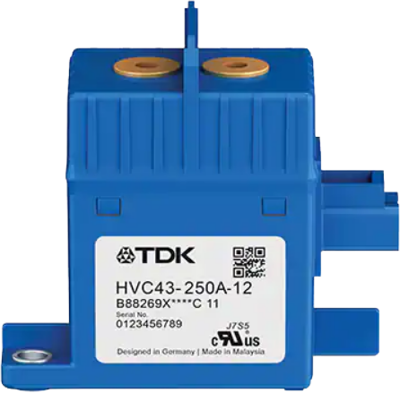

High-voltage contactor, B88269X3340C011, EPCOS
This product has been specially designed to meet the requirements of high-voltage DC switching applications. The optimized hermetically sealed design exhibits excellent reliability performance against harsh environments. The small size and low weight is optimized to serve automotive application as part of battery traction systems.
Features
- Single coil with connector
- No coil termination
- Main terminals without polarity (bi-directional)
- RoHS compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | internal thread M6 | |
| Rated Voltage | 1000 VDC | |
| Latching switching function | 1 Form A (N/O) | |
| Control Voltage | 24 VDC | |
| Assembly | chassis mounting | |
| Permanent current | 200 A | |
| Version | high voltage contactor | |
| Pin number | 1 pole | |
| Rated current | 60 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
