B88269X3330C011 | TDK (EPCOS)
High voltage contactor, 1 pole, 60 A, 1000 VDC, 1 Form A (N/O), coil 24 VDC, internal thread M6, B88269X3330C011
Order No.: 17D0829
MPN:
B88269X3330C011
Unit Price (€ / pc.)
104.0655 € *
Standard delivery time from the manufacturer is: 10 Weeks

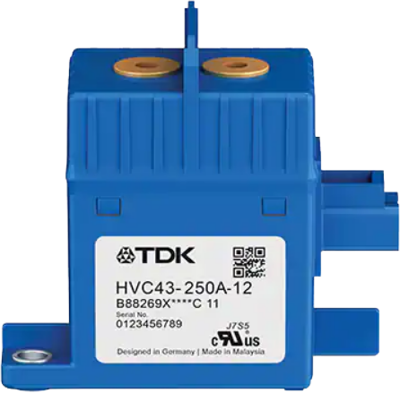

High-voltage contactor, B88269X3330C011, EPCOS
This product has been specially designed to meet the requirements of high-voltage DC switching applications. The optimized hermetically sealed design exhibits excellent reliability performance against harsh environments. The small size and low weight is optimized to serve automotive application as part of battery traction systems.
Features
- Single coil with connector
- No coil termination
- Main terminals without polarity (bi-directional)
- RoHS compatible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Assembly | chassis mounting | |
| Rated current | 60 A | |
| Connection | internal thread M6 | |
| Control Voltage | 24 VDC | |
| Pin number | 1 pole | |
| Permanent current | 150 A | |
| Rated Voltage | 1000 VDC | |
| Version | high voltage contactor |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
