70031K | Talema

Toroidal flat transformer, 7 VA, 9 V, 9 V, 2x115 V, Talema 70031K

Order No.: 38C762
EAN: 4099891350949
MPN:
70031K
Series: 700
Talema
70031K Talema Toroidal Transformers Image 1
70031K Talema Toroidal Transformers Image 2
Image may differ
Print
Key Specification:
Output power 7 W
Primary voltage 2 x 115 V
Secondary voltage (1) 9 V
Secondary voltage (2) 9 V

Ordering Information:

Supplied with mounting accessories
Show variants: 20
Download Datasheet Technical specifications
Unit Price (€ / pc.)
19.2423 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,847.26 € *
Price list
Quantity
Price per unit*
96 pcs.
19.2423 €
192 pcs.
18.6711 €
*incl. VAT plus shipping costs
Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Toroidal low-profile transformers, with UL certification, type Talema 700.

For ultra compact space and weight saving installation, excellent temperature response and only minute leakage field

Rated power 7.0 VA, type 7003.
Technical specifications
Secondary amperage 1 0.389 A
Output power 7 W
Secondary voltage (2) 9 V

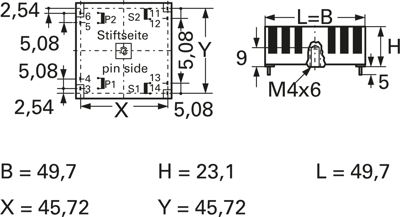

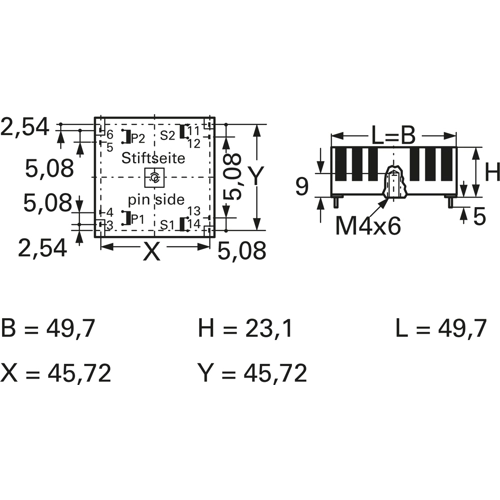

Length 49.7 mm
efficiency 74 %
secondary amperage 2 0.389 A
Primary voltage 2 x 115 V
Width 49.7 mm
Secondary voltage (1) 9 V
Height 23.1 mm
Articles of same specification 0
Logistics
Country of origin IN
Customs tariff number 85043180
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
