SDF-4.0-160 | Talema

Storage choke, PCB mounting, 160 µH, 4 A, SDF-4.0-160

Order No.: 66C135
EAN: 4099889004540
MPN:
SDF-4.0-160
Series: SD

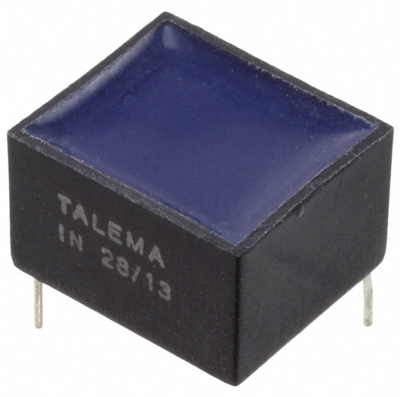

SDF-4.0-160 Talema Fixed Inductors Image 1
SDF-4.0-160 Talema Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
7.9373 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
3,174.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
400 pcs.
7.9373 €

Linear smoothing chokes, type Talema SD 0,63/500.

In molded housing, horizontal, for PCB connection, metal-powder core

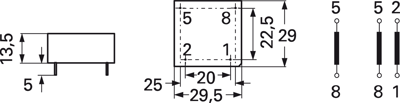

Size 29.5 x 29 x 13.5 mm, type SD.

Technical specifications
Filter Property Value
Length 29.5 mm
DC current 4 A
Height 13.5 mm
Inductance 160 µH
Measuring frequency 200 kHz
Width 29 mm
Design PCB mounting
DC resistance 40 mΩ
Version storage choke
Logistics
Property Value
Customs tariff number 85045000
Country of origin LK
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
