SDF-0.63-500 | Talema

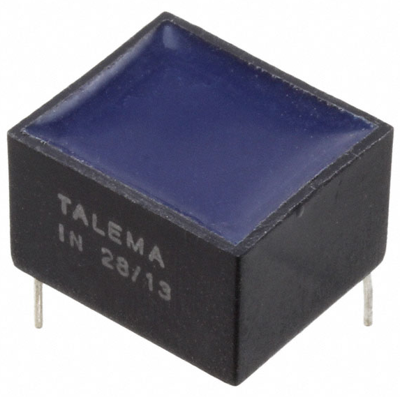

Storage choke, PCB mounting, 500 µH, 630 mA, SDF-0.63-500
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.2721 € *
Available: 1,287 pcs.
Total Price:
4.27 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2721 €
5 pcs.
4.0341 €
10 pcs.
3.8080 €
25 pcs.
3.3320 €
100 pcs.
2.7251 €
*incl. VAT plus shipping costs
Subject to prior sale

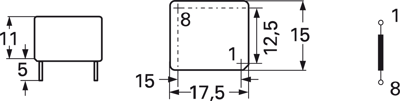

Linear smoothing chokes, 17.5 x 15 x 11 mm, type Talema SD 0,63/500.
In molded housing, horizontal, for PCB connection, metal-powder core
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | storage choke | |
| Inductance | 500 µH | |
| DC current | 630 mA | |
| DC resistance | 670 mΩ | |
| Measuring frequency | 200 kHz | |
| Design | PCB mounting | |
| Length | 17.5 mm | |
| Width | 15 mm | |
| Height | 11 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
