ASM-020 | Talema
Current converter, ±10%, -40 °C, 120 °C, ASM-020
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.3792 € *
Available: 341 pcs.
Total Price:
4.38 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3792 €
10 pcs.
3.8556 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
Subject to prior sale

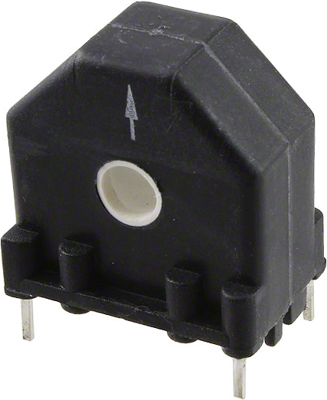

Current transformer, ASM-020, Talema
This current sensor operates as the sealed secondary of a current transformer while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns. Applications include detection of branch circuit overload and load drop or shutdown.
Features
- Full encapsulation for optimal PC board mounting
- ISO 9001:2015 and ISO 14001:2015 certified
- Fully RoHS and REACH Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | current converter | |
| Frequency | 50 to 60 Hz | |
| Assembly | THT | |
| Rated current | 20 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C | |

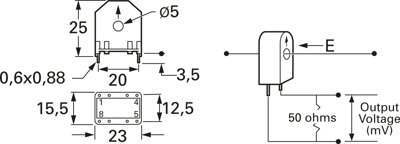

| Length | 23 mm | |
| Width | 15.5 mm | |
| Height | 25 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
