ASM-010 | Talema
Current converter, ±10%, -40 °C, 120 °C, ASM-010
Unit Price (€ / pc.)
2.9274 € *
Standard delivery time from the manufacturer is: On Request

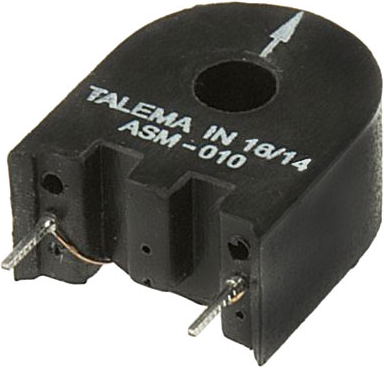

Current transformer, ASM-010, Talema
This current sensor operates as the sealed secondary of a current transformer while the conductor carrying the current to be measured functions as a one turn primary. Measurement accuracy can be improved by increasing the number of primary turns. Applications include detection of branch circuit overload and load drop or shutdown.
Features
- Full encapsulation for optimal PC board mounting
- ISO 9001:2015 and ISO 14001:2015 certified
- Fully RoHS and REACH Compliant

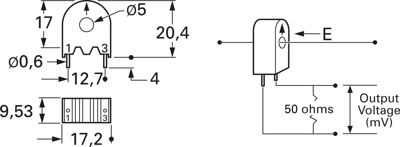

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 20.4 mm | |
| min. operating temperature | -40 °C | |
| Rated current | 10 A | |
| max. operating temperature | 120 °C | |
| Version | current converter | |
| Assembly | THT | |
| Frequency | 50 to 60 Hz | |
| Width | 9.53 mm | |
| Length | 17.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
