AC1030 | Talema
Current converter, 100 Ω (100R), 30 A, -50 °C
Unit Price (€ / pc.)
4.4268 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,992.06 € *
Price list
Quantity
Price per unit*
450 pcs.
4.4268 €
1000 pcs.
4.2959 €
2500 pcs.
4.1650 €
*incl. VAT plus shipping costs
Subject to prior sale

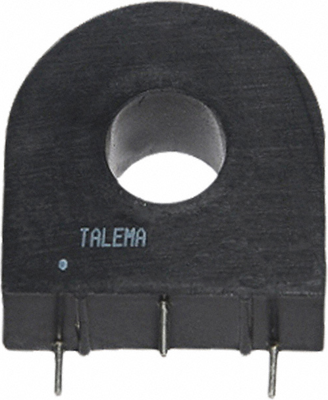

Current transformer, AC1030, Talema
Current transformer with excellent quality. Designed for use with 100 Ohms Burden Resistance.
Features
- ISO 9001:2015 and ISO 14001:2015 certified
- Fully RoHS and REACH Compliant
Applications
- Sensing overload current
- Ground fault detection
- Metering
- Analog to Digital Circuits

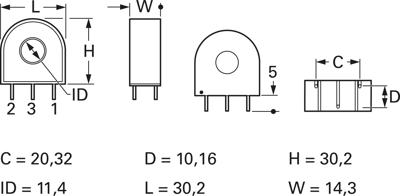

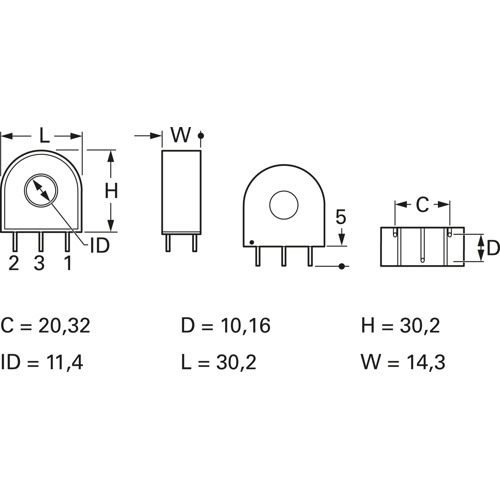

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 30.2 mm | |
| Weight | 35.5 g | |
| Length | 30.2 mm | |
| max. operating temperature | 120 °C | |
| Frequency | 50 to 60 Hz | |
| min. operating temperature | -40 °C | |
| Version | current converter | |
| Assembly | THT | |
| Rated current | 30 A | |
| Width | 14.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Original Packaging | Bar with 150 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
