AC1005 | Talema
Current converter, 100 Ω (100R), 5 A, -50 °C
Unit Price (€ / pc.)
5.2955 € *
Available: 3,345 pcs.
Total Price:
5.30 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2955 €
10 pcs.
4.6529 €
300 pcs.
4.0817 €
600 pcs.
3.9270 €
1200 pcs.
3.7842 €
*incl. VAT plus shipping costs
Subject to prior sale

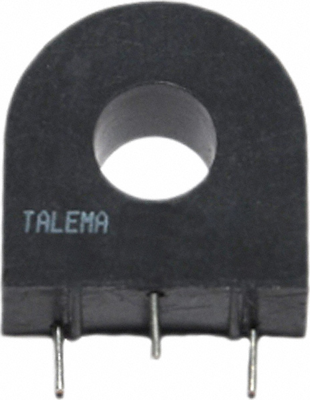

Current transformer, AC1005, Talema
Current transformer with excellent quality. Designed for use with 100 Ohms Burden Resistance.
Features
- ISO 9001:2015 and ISO 14001:2015 certified
- Fully RoHS and REACH Compliant
Applications
- Sensing overload current
- Ground fault detection
- Metering
- Analog to Digital Circuits

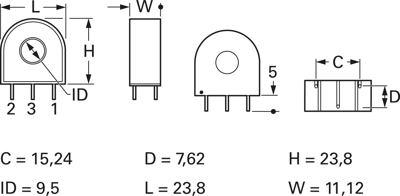

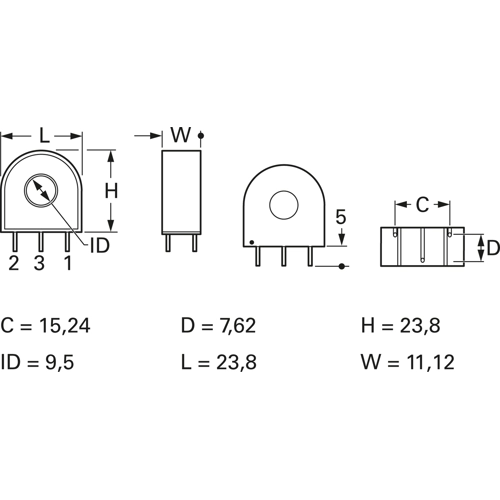

Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 120 °C | |
| Length | 23.8 mm | |
| Rated current | 5 A | |
| min. operating temperature | -40 °C | |
| Height | 23.8 mm | |
| Assembly | THT | |
| Width | 11.12 mm | |
| Weight | 16.33 g | |
| Frequency | 50 to 60 Hz | |
| Version | current converter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Tray with 300 pieces |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
