SS34 | Taiwan Semiconductor
Schottky rectifier diode, 40 V (RRM), 3 A, DO-214AB, SS34
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.3213 € *
Available: 557 pcs.
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3213 €
25 pcs.
0.2975 €
100 pcs.
0.2737 €
*incl. VAT plus shipping costs
Subject to prior sale

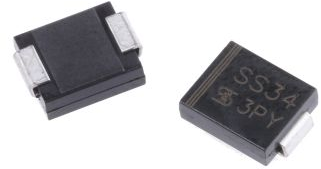

Schottky diode, SS34, Taiwan Semiconductor
Schottky barrier surface mount rectifier.
Features
- Low power loss, high efficiency
- Guard ring for overvoltage protection
- High surge capability
- Compliant to RoHS
- Halogen free
Applications
- Switch mode power supply
- Adapters
- Lighting application
- Converter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | schottky rectifier diode | |
| Enclosure | DO-214AB | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Surge blocking voltage V RMS | 28 V | |
| Forward Current | 3 A | |
| Junction temperature (min.) | -55 °C | |
| Junction temperature (max.) | 150 °C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
