1121880200 | Tadiran Batteries

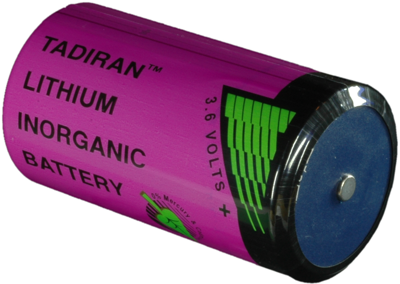

Lithium-battery, 3.6 V, LR20, D, round cell, soldering lug, 1121880200
Unit Price (€ / pc.)
18.4688 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
554.06 € *
Price list
Quantity
Price per unit*
30 pcs.
18.4688 €
60 pcs.
16.9694 €
*incl. VAT plus shipping costs
Subject to prior sale
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Usage | general applications | |
| diameter | 33 mm | |
| max. operating temperature | 85 °C | |
| Technology | lithium | |
| Connection | soldering lug | |
| Size | D | |
| Rated voltage | 3.6 V | |
| Nominal capacity | 19 Ah | |
| other designation | mono | |
| min. operating temperature | -55 °C | |
| IEC designation | LR20 | |
| Height | 61.5 mm | |
| Version | round cell |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IL |
| Customs tariff number | 85065010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
