UB3H3-500 | SUNON
DC radial fan, 3 V, 17 x 17 x 3 mm, 0.006 m³/min, 32 dB, vapo, SUNON UB3H3-500
Order No.: 90B3306
EAN: 4099889484779
MPN:
UB3H3-500
D01000941F-00
Unit Price (€ / pc.)
24.8353 € *
Standard delivery time from the manufacturer is: 18 Weeks

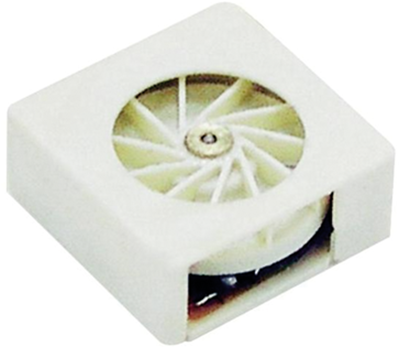

DC radial fan, UB3H3-500, SUNON
This product has the innovative design with the lowest energy consumption, environmentally friendly materials which have passed IP55 waterproof and dustproof. Used in portable devices such as mobile devices, computer information, network communications, consumer electronics, medical industry, security monitoring, etc.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 3 mm | |
| Height | 17 mm | |
| Volume flow | 0.006 m³/min | |
| Type of bearing | vapo | |
| Sound pressure level | 32 db | |
| Rated voltage | 3 V | |
| speed | 12500 1/min | |
| Width | 17 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
