UF3F3-500 | SUNON
DC axial fan, 3 V, 15 x 15 x 3 mm, 0.52 m³/h, 30 dB, vapo, SUNON UF3F3-500
Unit Price (€ / pc.)
25.5731 € *
Standard delivery time from the manufacturer is: 18 Weeks

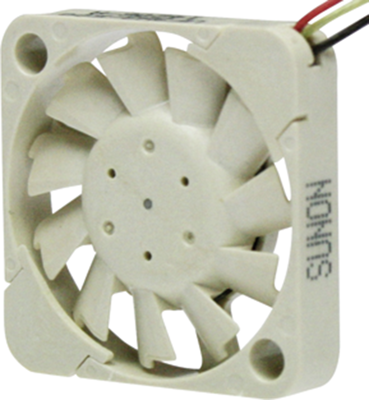

DC Axial fan, UF3F3-500, SUNON
The UF3F3-500 is a brushless fan and has a motion control, positioning with actuation system. This brushless fan is ideally suited for manufacturing applications because of their high power density, good speed-torque characteristics, high efficiency, wide speed ranges and low cost maintenance.
Features
- Single phase, 6-poles Brushless DC motor
- Insulution resistance 20 ohm between internal stator and lead wire (+) measured at DC 100V
- Direction of rotation clockwise, viewed toward rotor
- Rated voltage 3 V DC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 3 V | |
| Width | 15 mm | |
| Height | 15 mm | |
| Depth | 3 mm | |
| Volume flow | 0.52 m³/h | |
| Sound pressure level | 30 db | |
| speed | 14500 1/min | |
| Type of bearing | vapo | |
| Power consumption | 0.1 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84145925 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
