MEC0251V1-000U-A99 | SUNON
DC axial fan, 12 V, 120 x 120 x 25 mm, 3 m³/h, 44.5 dB, Ball bearing, SUNON, MEC0251V1-000U-A99
Images may differ
Unit Price (€ / pc.)
12.7568 € *
Available: 9 pcs.
Leadtime: 18 Weeks **
Total Price:
12.76 € *
Quantity
Price per unit*
1 pcs.
12.7568 €
10 pcs.
11.2217 €
50 pcs.
10.4601 €
150 pcs.
9.9960 €
500 pcs.
9.4962 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

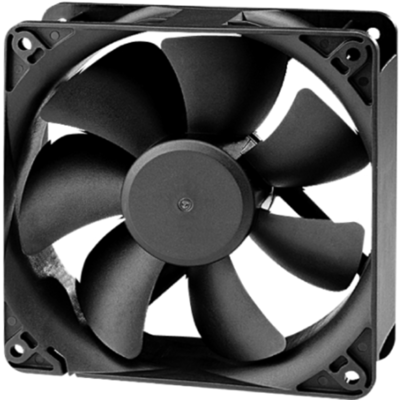

DC Axial fan, MEC0251V1-000U-A99, SUNON
The MEC0251V1-000U-A99 DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.
Features
- Motor design DC brushless 4 pole
- Precision vapo bearing system
- Insulution resistance 10 ohm minimum at 500 VDC
- Material of frame thermoplastic PBT
Technical specifications
| Version | DC axial fan | |
| Width | 120 mm | |
| speed | 3100 1/s | |
| Height | 120 mm | |
| Type of bearing | Ball bearing | |
| Power consumption | 5.5 W | |
| Rated voltage | 12 V | |
| Sound pressure level | 44.5 db | |
| Depth | 25 mm | |
| Volume flow | 3 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
