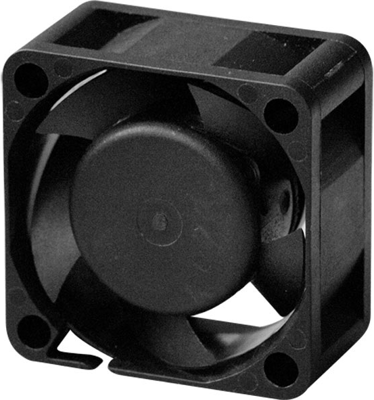

EE40201S2-1000U-999 | SUNON
DC axial fan, 12 V, 40 x 40 x 20 mm, 13.08 m³/h, 21 dB, slide bearing, SUNON EE40201S2-1000U-999
Unit Price (€ / pc.)
5.1051 € *
Available in 4 Days: 2,279 pcs. - if ordered today
Total Price:
5.11 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1051 €
10 pcs.
4.7600 €
50 pcs.
4.4625 €
100 pcs.
4.1888 €
*incl. VAT plus shipping costs
Subject to prior sale
DC Axial fan, EE40201S2-1000U-999, SUNON
The EE40201S2-1000U-999 DC axial fan use MagLev to increase performance, durability and reduce noise. Magnetic levitation technology eliminates the need for shaft to bearing contact to ensure friction free operation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DC axial fan | |
| Rated voltage | 12 V | |
| Width | 40 mm | |
| Height | 40 mm | |
| Depth | 20 mm | |
| Volume flow | 13.08 m³/h | |
| Sound pressure level | 21 db | |
| speed | 6000 1/min | |
| Type of bearing | slide bearing | |
| Power consumption | 0.76 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
