A2179-HBL TC.GN | SUNON

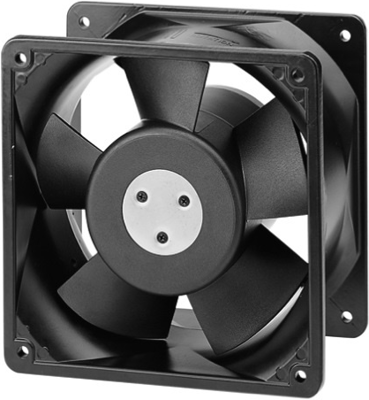

AC axial fan, 220 V, 176 x 176 x 89 mm, 569.12 m³/h, 66 dB, ball bearing, SUNON A2179-HBL TC.GN
Unit Price (€ / pc.)
109.9917 € *
Standard delivery time from the manufacturer is: 1 Week
AC-Fan, A2179-HBL TC.GN, SUNON
Alveolate Motor AC fan with automatic motor-wire wrapping technology ensures stable performance of high wind volume, low acoustic noise, also available with functions of dual spinning rate, and thermal cutout.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | AC axial fan | |
| Rated voltage | 220 V | |
| Width | 176 mm | |
| Height | 176 mm | |
| Depth | 89 mm | |
| Volume flow | 569.12 m³/h | |
| Sound pressure level | 66 db | |
| speed | 3250 1/min | |
| Type of bearing | ball bearing | |
| Power consumption | 30 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
