SM6T27A | STMicroelectronics

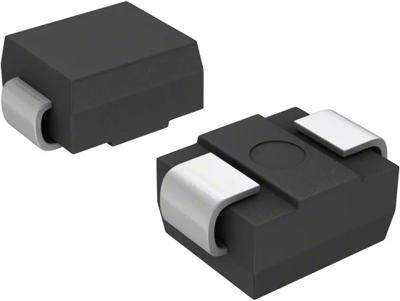

SMD TVS diode, unidirectional, 600 W, 23.1 V, DO-214AA, STMicroelectronics SM6T27A
Unit Price (€ / pc.)
0.0857 € *
Available in 5 Days: 3,600 pcs. - if ordered today
Diode Surface Mount SMB, SM6T27A, STMicroelectronics
The SM6T27A is designed to protect sensitive equipment against electrostatic discharge according to IEC 61000-4-2 and MIL STD 883, method 3015, and electrical overstress according to IEC 61000-4-4 and 5. This device is more generally used against surge below 600 W (10/1000 μs). The Planar technology makes it suitable for high-end equipment and SMPS where low leakage current and high junction temperature is required to provide reliability and stability over time.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | DO-214AA | |
| Number of diodes | 1 | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Version | unidirectional | |
| Rated blocking voltage | 23.1 V | |
| Breakdown voltage | 25.7 V | |
| Pulse power loss | 600 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
