BTW69-800 | STMicroelectronics

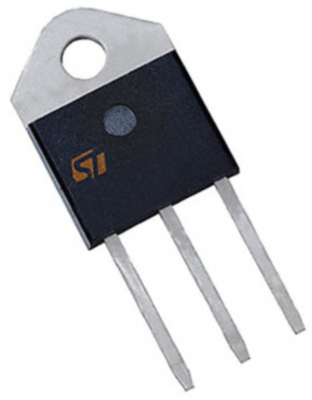

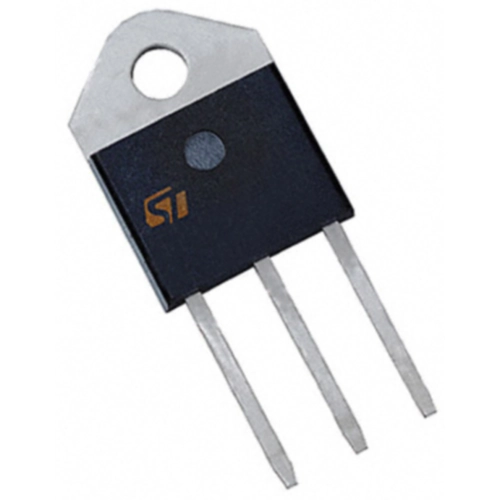

SCR, 800 V (RRM), TOP3, STMicroelectronics BTW69-800
Order No.: 19S1076
EAN: 4099879032263
MPN:
BTW69-800
Unit Price (€ / pc.)
7.6993 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
7.70 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6993 €
10 pcs.
7.4375 €
25 pcs.
7.1757 €
100 pcs.
6.9258 €
250 pcs.
6.4141 €
*incl. VAT plus shipping costs
Subject to prior sale
Silicon controlled rectifier, BTW69-800, STM
The BTW69-800 is suitable in applications where power handling and power dissipation are critical, such as solid state relays, welding equipment, high power motor control and power converters. This device offers a superior performance in surge current handling capabilities, allowing usage in industrial environment. Thanks to its internal ceramic pad, it provide high voltage insulation, complying with UL standards.
Applications
- Solid state relays
- Welding equipment
- High power motor control
- Heating systems
- Controlled AC/DC bridge
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Number of pins | 3 | |
| max. holding current | 5 mA | |
| min. operating temperature | -40 °C | |
| Voltage V RRM (peak reverse voltage) | 800 V | |
| Voltage slew rates dV/dt | 1000 V/s | |
| Version | SCR | |
| Assembly | THT | |
| Enclosure | TOP3 | |
| Rated current | 50 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Original Packaging | Bar with 30 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
