BTB12-600CWRG | STMicroelectronics

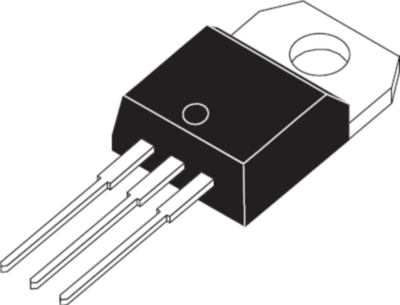

Triac, 100 V (RRM), TO-220AB, STMicroelectronics BTB12-600CWRG
Unit Price (€ / pc.)
0.595 € *
Available in 5 Days: 130 pcs. - if ordered today
Triac, BTB12-600CWRG, STM
The BTB12-600CWRG is suitable for general purpose mains power AC switching. It can be used as ON/OFF function in applications such as static relays, heating regulation or induction motor starting circuit. This product is also recommended for phase control operations in light dimmers and appliance motors speed controllers.
Features
- Medium current Triac
- Low thermal resistance with clip bonding
- Low thermal resistance insulation ceramic
- High commutation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-220AB | |
| Version | triac | |
| Number of pins | 3 | |
| Rated current | 12 A | |
| On-State Voltage | 1.55 V | |
| max. holding current | 40 mA | |
| Gate trigger voltage | 1.3 V | |
| Gate trigger current | 35 mA | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| Voltage slew rates dV/dt | 500 V/s | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85413000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
