BTA41-700B-T | STMicroelectronics

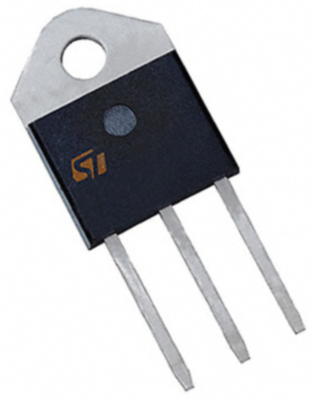

Triac, TO-3P, STMicroelectronics BTA41-700B-T
Unit Price (€ / pc.)
9.4724 € *
Available: 6 pcs.
Total Price:
9.47 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4724 €
30 pcs.
8.3300 €
60 pcs.
8.0563 €
120 pcs.
7.7588 €
510 pcs.
7.2828 €
*incl. VAT plus shipping costs
Subject to prior sale
Triac, BTA41-700B-T, STM
The BTA41-700B-T is suitable for general purpose AC switching. When used with the properly dimensioned heatsink, this product can enable AC switching systems up to 9 kW.
Features
- High current Triac
- Low thermal resistance
Applications
- On/off function in static relays, heating regulation, induction motor starting circuits
- Phase control operations in light dimmers and motor speed controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate trigger current | 50 mA | |
| Gate trigger voltage | 1.5 V | |
| Enclosure | TO-3P | |
| Voltage slew rates dV/dt | 500 V/s | |
| Assembly | THT | |
| On-State Voltage | 1.8 V | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Version | triac | |
| Number of pins | 3 | |
| max. holding current | 80 mA | |
| Rated current | 40 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | PH |
| MSL | MSL 1 |
| Original Packaging | Bar with 30 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
