BTA41-600BRG | STMicroelectronics

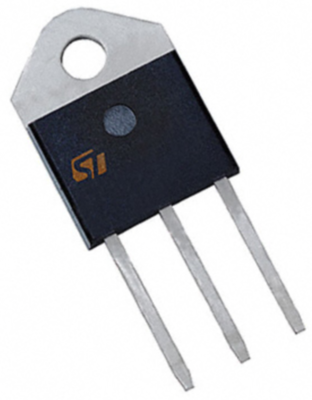

Triac, TO-3P, STMicroelectronics BTA41-600BRG
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.7370 € *
Available: 94 pcs.
Available in 5 Days: 10,115 pcs. - if ordered today
Triac, BTA41-600BRG, STM
The BTA41-600BRG is suitable for general purpose AC switching. When used with the properly dimensioned heatsink, this product can enable AC switching systems up to 9 kW.
Features
- High current Triac
- Low thermal resistance
Applications
- On/off function in static relays, heating regulation, induction motor starting circuits
- Phase control operations in light dimmers and motor speed controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-3P | |
| Version | triac | |
| Number of pins | 3 | |
| Rated current | 40 A | |
| On-State Voltage | 1.55 V | |
| max. holding current | 80 mA | |
| Gate trigger voltage | 1.3 V | |
| Gate trigger current | 50 mA | |
| Voltage slew rates dV/dt | 500 V/s | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85413000 |
| Country of origin | MY |
| Original Packaging | Bar with 30 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
