BTA26-600B | STMicroelectronics

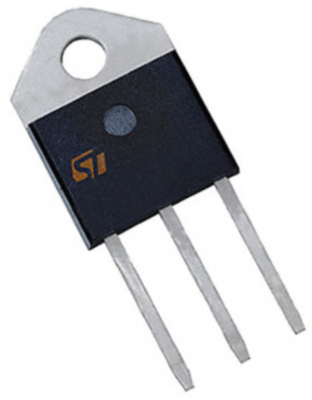

Triac, TO-3P, STMicroelectronics BTA26-600B
Unit Price (€ / pc.)
2.2848 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
2.28 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2848 €
10 pcs.
2.2134 €
25 pcs.
2.1301 €
100 pcs.
2.0587 €
250 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale
Triac, BTA26-600B, STM
The BTA26-600B is suitable for general purpose mains power AC switching. It can be used as ON/OFF function in applications such as static relays, heating regulation or induction motor starting circuit. This product is also recommended for phase control operations in light dimmers and appliance motors speed controllers.
Features
- High current Triac
- Low thermal resistance with clip bonding
- High commutation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-3P | |
| Version | triac | |
| Number of pins | 3 | |
| Rated current | 25 A | |
| On-State Voltage | 1.7 V | |
| max. holding current | 80 mA | |
| Gate trigger voltage | 1.3 V | |
| Gate trigger current | 50 mA | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Original Packaging | Bar with 30 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85413000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
