BAT48 | STMicroelectronics

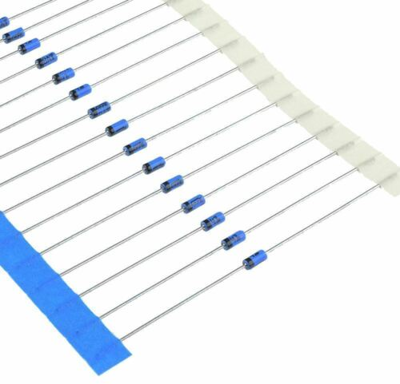

Schottky rectifier diode, 40 V (RRM), 0.35 A, DO-35, BAT48
Unit Price (€ / pc.)
0.0750 € *
Available: 735 pcs.
Available in 5 Days: 36,900 pcs. - if ordered today
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0750 €
300 pcs.
0.0524 €
1000 pcs.
0.0440 €
3000 pcs.
0.0381 €
10000 pcs.
0.0333 €
*incl. VAT plus shipping costs
Subject to prior sale
Schottky diode, BAT48, STMicroelectronics
Small signal Schottky diode is general purpose and features very low turn-on voltage and fast switching.
Features
- Low leakage current losses
- Negligible switching losses
- Low forward and reverse recovery times
- Low capacitance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 125 °C | |
| Forward Current | 0.35 A | |
| max. operating temperature | 150 °C | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Capacity | 30 pF | |
| Assembly | THT | |
| Number of diodes | 1 | |
| min. operating temperature | -65 °C | |
| Enclosure | DO-35 | |
| Junction temperature (min.) | -40 °C | |
| Version | schottky rectifier diode |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 4,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
