BAT41 | STMicroelectronics
Schottky rectifier diode, 100 V (RRM), 0.1 A, DO-35, BAT41
No longer available from manufacturer
Unit Price (€ / pc.)
0.0428 € *
Available: 689 pcs.
Available in 5 Days: 22,900 pcs. - if ordered today
Total Price:
0.04 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0428 €
10 pcs.
0.0393 €
100 pcs.
0.0356 €
250 pcs.
0.0327 €
500 pcs.
0.0302 €
*incl. VAT plus shipping costs
Subject to prior sale

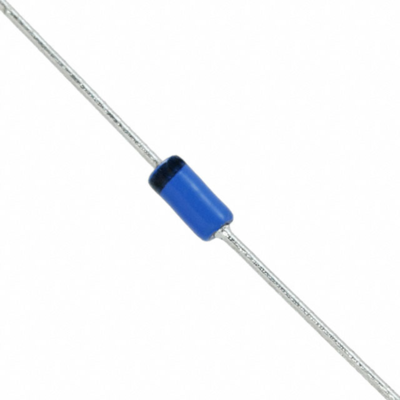

Schottky diode, BAT41, STMicroelectronics
General purpose metal to silicon diode featuring very low turn-on voltage and fast switching. This device has integrated protection against excessive voltage such as electrostatic discharges.
Features
- Low leakage current losses
- Negligible switching losses
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | schottky rectifier diode | |
| Enclosure | DO-35 | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| Forward Current | 0.1 A | |
| Number of diodes | 1 | |
| Junction temperature (max.) | 150 °C | |
| Capacity | 2 pF | |
| Assembly | THT | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 4,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
