L6225PD | STMicroelectronics

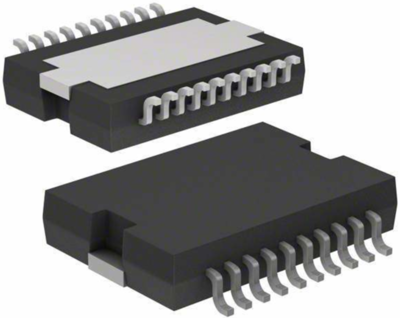

L6225PD, PSO20

Order No.: 41S1196
EAN: 4099879102126
MPN:
L6225PD
L6225PD STMicroelectronics Motor Control ICs
Image may differ
Unit Price (€ / pc.)
15.3629 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
15.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15.3629 €

IC, L6225PD, STMicroelectronics

The L6225PD is a DMOS Dual Full Bridge designed for motor control applications, realized in MultiPower-BCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. The L6225PD features a non-dissipative protection of the high side PowerMOSFETs and thermal shutdown.

Features

  • Integrated fast free wheeling diodes
  • Undervoltage lockout
  • Cross conduction protection
Technical specifications
Filter Property Value
Assembly SMD
max. operating temperature 150 °C
Output current 4 A
Enclosure PSO-20
min. operating temperature -40 °C
Logistics
Property Value
Country of origin MY
Original Packaging Bar with 31 pieces
Customs tariff number 85423390
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
