L6201PSTR | STMicroelectronics

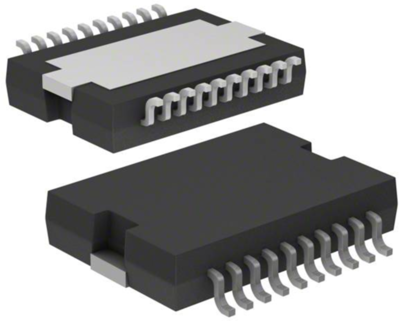

L6201PS, PSO20, STMicroelectronics
Order No.: 41S1184
EAN: 4099879102072
MPN:
L6201PSTR
Unit Price (€ / pc.)
7.7826 € *
Available in 5 Days: 360 pcs. - if ordered today
Total Price:
38.91 € *
Price list
Quantity
Price per unit*
5 pcs.
7.7826 €
25 pcs.
7.4851 €
100 pcs.
7.1876 €
*incl. VAT plus shipping costs
Subject to prior sale
IC, L6201PSTR, STMicroelectronics
The IC is a full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance.
The DMOS output transistors can operate at supply voltages up to 42 V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and µC compatible. Each channel (half-bridge) of the device is controlled by a separate logic input, while a common enable controls both channels.
Features
- High efficiency
- Internal logic supply
- Cross conduction protection
- Thermal shutdown
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| max. operating temperature | 150 °C | |
| Enclosure | SOIC-20 | |
| min. operating temperature | -40 °C | |
| Output current | 4 A |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Original Packaging | Reel with 600 pieces |
| Country of origin | QU |
| Customs tariff number | 85423990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
