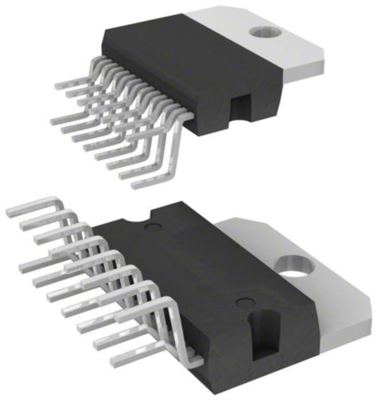

L298N | STMicroelectronics
IC, Multivatt 15 horiz., 4.8 V, 46 V
Order No.: 40S9734
EAN: 4099879101976
MPN:
L298N
Unit Price (€ / pc.)
8.3776 € *
Available: 2 pcs.
Total Price:
8.38 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3776 €
5 pcs.
7.8897 €
10 pcs.
7.3899 €
25 pcs.
6.9020 €
50 pcs.
6.4022 €
*incl. VAT plus shipping costs
Subject to prior sale
IC, L298N, STMicroelectronics
The L298N is an integrated monolithic circuit in a 15-lead Multiwatt vertical and PowerSO20 packages. It is a high voltage, high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Two enable inputs are provided to enable or disable the device independently of the input signals.
The emitters of the lower transistors of each bridge are connected together and the corresponding external terminal can be used for the connection of an external sensing resistor. An additional supply input is provided so that the logic works at a lower voltage.
Features
- Overtemperature protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -25 °C | |
| max. operating temperature | 130 °C | |
| Assembly | THT | |
| Enclosure | Multiwatt-15 |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
| Country of origin | QU |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
