STW20NK50Z | STMicroelectronics

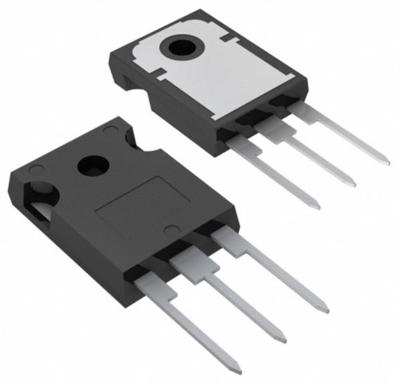

STMicroelectronics N channel SuperMESH power MOSFET, 500 V, 17 A, TO-247, STW20NK50Z
Order No.: 24S9226
EAN: 4099879033772
MPN:
STW20NK50Z
Unit Price (€ / pc.)
2.1301 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
10 pcs.
2.0587 €
25 pcs.
1.9873 €
100 pcs.
1.8445 €
250 pcs.
1.7731 €
*incl. VAT plus shipping costs
Subject to prior sale
MOSFET NFET s series STW.
Type: STW20NK50Z, TO247
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power loss | 190 W | |
| Max. current | 17 A | |
| drain-source on resistance RDS (on) max @VGS=10V | 270 mΩ | |
| max. operating temperature | 150 °C | |
| max. Voltage | 500 V | |
| Gate Charge Qg @10V (nC) | 1x10<sup>-8</sup> C | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Enclosure | TO-247 | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MA |
| Original Packaging | Bar with 30 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
