STP75NF75 | STMicroelectronics

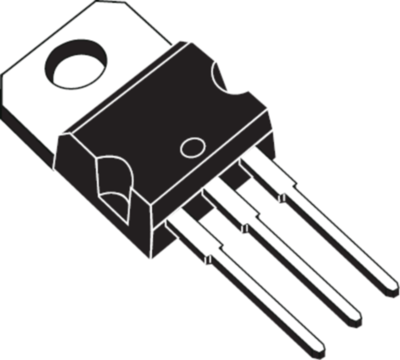

STMicroelectronics N channel STripFET II power MOSFET, 75 V, 80 A, TO-220, STP75NF75
Order No.: 30S1137
MPN:
STP75NF75
Unit Price (€ / pc.)
1.2733 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
10 pcs.
1.2257 €
25 pcs.
1.1900 €
100 pcs.
1.1067 €
250 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale
MOSFET, STP75NF75, STMicroelectronics
The STP75NF75 has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced highefficiency, high-frequency isolated DC-DC converters for Telecom and Computer applications. It is also intended for any applications with low gate drive requirements.
Features
- Exceptional dv/dt capability
Applications
- Switching applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Max. current | 80 A | |
| drain-source on resistance RDS (on) max @VGS=10V | 11 mΩ | |
| max. operating temperature | 175 °C | |
| max. Voltage | 75 V | |
| Gate Charge Qg @10V (nC) | 1x10<sup>-8</sup> C | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Enclosure | TO-220 | |
| Version | N channel |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85412900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
