STP36NF06L | STMicroelectronics

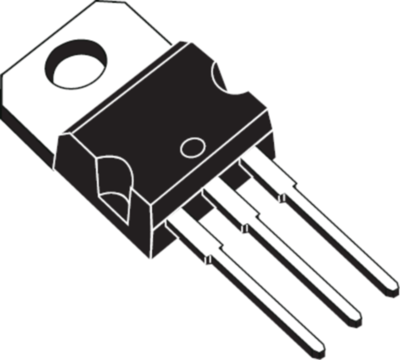

STMicroelectronics N channel automotive grade power MOSFET, 60 V, 30 A, TO-220, STP36NF06L
Unit Price (€ / pc.)
1.2495 € *
Available: 320 pcs.
Available in 5 Days: 860 pcs. - if ordered today
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
10 pcs.
1.1543 €
50 pcs.
1.0710 €
200 pcs.
0.9996 €
500 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale
Power MOSFET, STP36NF06L, STMicroelectronics
The STP36NF06L is a 60V N-channel Power MOSFET developed using unique "single feature size"™ strip-based process. The resulting transistor shows extremely high packing density for low on resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility. Improved gate charge and lower power dissipation to meet today's challenging efficiency requirements.
Features
- Exceptional dv/dt capability
- 100% Avalanche tested
- Application oriented characterization
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N channel | |
| max. Voltage | 60 V | |
| Max. current | 30 A | |
| drain-source on resistance RDS (on) max @VGS=10V | 40 mΩ | |
| Enclosure | TO-220 | |
| Gate Charge Qg @10V (nC) | 5x10<sup>-9</sup> C | |
| Power loss | 70 W | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 1 |
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
