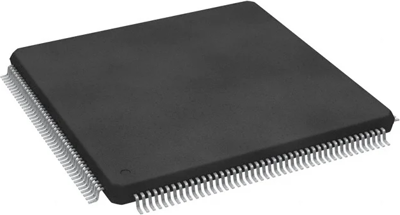

Flash-Microcontroller, STM32F429IIT6, STMicroelectronics
The STM32F429IIT6 device is based on the high-performance Arm Cortex-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4 core features a floating-point unit (FPU) single precision, which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The STM32F429IIT6 incorporates high-speed embedded memory (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), 4 Kbytes of backup SRAM, and an extensive range of enhanced I/O and peripheral connected to one APB bus, one AHB bus and a 32-bit multi-AHB bus matrix. The device offers three 12-bit ADCs, two DACs, a low-power RTC, 12 general-purpose 16-bit timers including two PWM timers for motor control, and two general-purpose 32-bit timers. It also features standard and advanced communication interface.
Features
- Clock, reset and supply management
- Advanced connectivity
