STM32F407ZET6 | STMicroelectronics

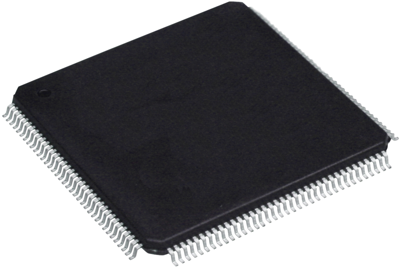

ARM Cortex M4 microcontroller, 32 bit, 168 MHz, LQFP-144, STM32F407ZET6
Microcontroller, STM32F407ZET6, STMicroelectronics
The STM32F407ZET6 is a 32-bit 144-pin advanced connectivity and encryption Microcontroller Unit features a floating point unit single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit which enhances application security.
It incorporates high-speed embedded memories up to 4kB of backup SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix. This device offers three 12-bit ADCs, two DACs, a low-power RTC and twelve general-purpose 16-bit timers, two general-purpose 32-bit timers, a true random number generator and also features standard and advanced communication interfaces.
Features
- LCD parallel interface, 8080/6800 modes
- Clock, reset and supply management - POR, PDR, PVD and BOR
- Low-power operation - Sleep, stop and standby modes
- General-purpose DMA - 16-stream DMA controller with FIFOs and burst support
- Debug mode - Serial wire debug (SWD) and JTAG interfaces
| Filter | Property | Value |
|---|---|---|
| Version | flash | |
| Clock frequency | 168 MHz | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Core Size | 32 bit | |
| Number of pins | 144 | |
| Number of I/Os | 114 | |
| Data RAM Size | 192 byte | |
| Enclosure | LQFP-144 | |
| Processor core | ARM Cortex M4 | |
| Memory size | 512 KB | |
| Voltage | 1.8-3.6 V | |
| Assembly | SMD |
| Property | Value |
|---|---|
| Original Packaging | Tray with 90 pieces |
| MSL | MSL 3 |
| Customs tariff number | 85423190 |
| Country of origin | PH |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
| SVHC free | Yes |
