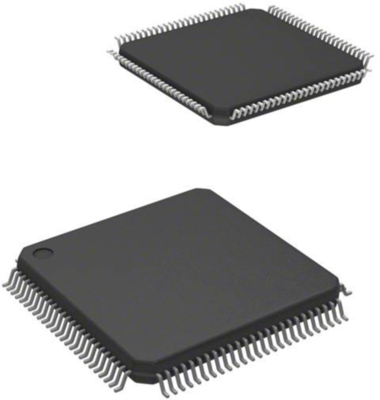

STM32F105VCT6 | STMicroelectronics
ARM Cortex M3 microcontroller, 32 bit, 72 MHz, LQFP-100, STM32F105VCT6
Order No.: 51S2368
EAN: 4099879106377
MPN:
STM32F105VCT6
Unit Price (€ / pc.)
5.0694 € *
Available in 5 Days: 6,574 pcs. - if ordered today
Microcontroller, STM32F105VCT6, STMicroelectronics
The STM32F105VCT6 is a connectivity line 32bit Microcontroller Unit offers two 12bit ADCs, four general-purpose 16bit timers plus a PWM timer and as well as standard and advanced communication interfaces up to two I²Cs, three SPIs and two I2Ss, five USARTs, an USB OTG FS and two CANs. It incorporates the high-performance ARM® Cortex®-M3 32bit RISC core operating at a 72MHz frequency, high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
Features
- POR, PDR and programmable voltage detector
- Low power - Sleep, stop and standby modes, VBAT supply for RTC and backup registers
- Clock, reset and supply management
- 12-channel DMA controller
- Debug mode - Serial wire debug (SWD) and JTAG interfaces
- 2 x Watchdog timers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| Number of I/Os | 80 | |
| Core Size | 32 bit | |
| Data RAM Size | 64 KB | |
| Version | flash | |
| Enclosure | LQFP-100 | |
| max. operating temperature | 85 °C | |
| Voltage | 2-3.6 V | |
| Number of pins | 100 | |
| Processor core | ARM Cortex M3 | |
| Clock frequency | 72 MHz | |
| Assembly | SMD | |
| Memory size | 256 KB |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423390 |
| MSL | MSL 3 |
| Original Packaging | Tray with 90 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
