STM32F103CBT6 | STMicroelectronics

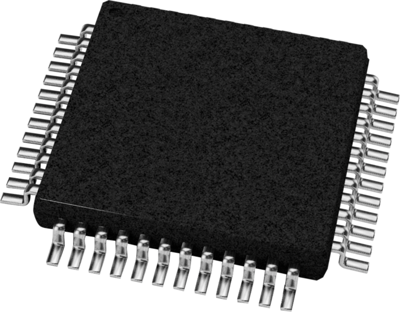

ARM Cortex M3 microcontroller, 32 bit, 72 MHz, LQFP-48, STM32F103CBT6
Unit Price (€ / pc.)
2.2729 € *
Available: 5 pcs.
Available in 5 Days: 35,015 pcs. - if ordered today
Total Price:
2.27 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2729 €
25 pcs.
2.1182 €
100 pcs.
1.9635 €
250 pcs.
1.8921 €
*incl. VAT plus shipping costs
Subject to prior sale
ARM Cortex M3 microcontroller, STM32F103CBT6, STMicroelectronics
The STM32F103CBT6 medium-density performance line family incorporates the highperformance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, highspeed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
Features
- Low-power
- Debug mode
- Clock, reset and supply management
Applications
- Motor drive and application control
- Medical and handheld equipment
- PC peripherals gaming and GPS platforms
- Industrial applications: PLC, inverters, printers, and scanners
- Alarm systems, video intercom, and HVAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| Voltage | 2-3.6 V | |
| min. operating temperature | -40 °C | |
| Version | flash | |
| Core Size | 32 bit | |
| Processor core | ARM Cortex M3 | |
| Enclosure | LQFP-48 | |
| Memory size | 128 KB | |
| Number of pins | 48 | |
| Number of I/Os | 37 | |
| Clock frequency | 72 MHz | |
| Data RAM Size | 20 KB | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Original Packaging | Tray with 250 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
