STM32F031C6T6 | STMicroelectronics

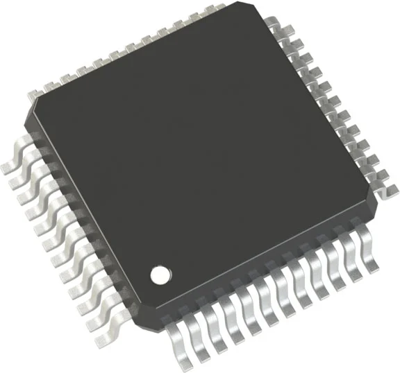

ARM Cortex M0 microcontroller, 32 bit, 48 MHz, LQFP-48, STM32F031C6T6
Order No.: 51S2672
MPN:
STM32F031C6T6
Unit Price (€ / pc.)
2.3681 € *
Available in 5 Days: 178 pcs. - if ordered today
Flash-Microcontroller, STM32F031C6T6, STMicroelectronics
The STM32F031C6T6 microcontroller incorporates the high-performance ARM Cortex-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memory (up to 32 Kbytes of Flash memory and 4 Kbytes of SRAM), and an extensive range of enhanced peripheral and I/O. The device offers standard communication interfaces (one I2C, one SPI/I2S and one USART), one 12-bit ADC, five 16-bit timers, one 32-bit timer and an advanced-control PWM timer.
Features
- CRC calculation unit
- Reset and power management
- Clock management
- Calendar RTC with alarm and periodic wakeup from Stop/Standby
- Communication interfaces
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | LQFP-48 | |
| Assembly | SMD | |
| Version | flash | |
| Processor core | ARM Cortex M0 | |
| Core Size | 32 bit | |
| Clock frequency | 48 MHz | |
| Number of I/Os | 39 | |
| Memory size | 32 KB | |
| Data RAM Size | 4 KB | |
| Protocol | I2C, USART, SPI | |
| Voltage | 2-3.6 V | |
| Number of pins | 48 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 3 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
