STM32F030RCT6TR | STMicroelectronics

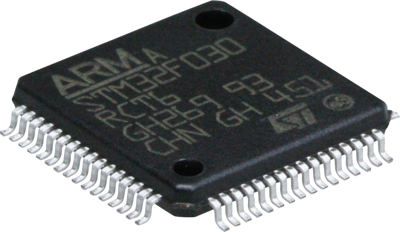

ARM Cortex M0 microcontroller, 32 bit, 48 MHz, LQFP-64, STM32F030RCT6TR
Unit Price (€ / pc.)
3.2011 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
3.0940 €
25 pcs.
2.9869 €
100 pcs.
2.7727 €
250 pcs.
2.6656 €
*incl. VAT plus shipping costs
Subject to prior sale
ARM Cortex M0 microcontroller, STM32F030RCT6TR, STMicroelectronics
The STM32F030RCT6TR microcontroller incorporates the high-performance ARM Cortex-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. It is suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.
Features
- Reset and power management
- Clock management
- 5-channel DMA controller
- Serial wire debug (SWD)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core Size | 32 bit | |
| Number of pins | 64 | |
| Data RAM Size | 32 KB | |
| Enclosure | LQFP-64 | |
| max. operating temperature | 85 °C | |
| Processor core | ARM Cortex M0 | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Memory size | 256 KB | |
| Voltage | 2.4-3.6 V | |
| Number of I/Os | 51 | |
| Clock frequency | 48 MHz | |
| Version | flash |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| Original Packaging | Reel with 1,000 pieces |
| Country of origin | CN |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
