STM32F030C8T6 | STMicroelectronics

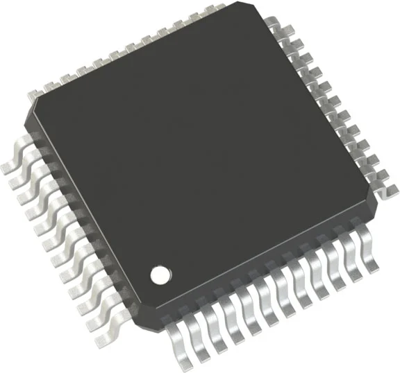

ARM Cortex M0 microcontroller, 32 bit, 48 MHz, LQFP-48, STM32F030C8T6
Order No.: 51S2668
MPN:
STM32F030C8T6
Unit Price (€ / pc.)
0.9758 € *
Available in 5 Days: 2,853 pcs. - if ordered today
Flash-Microcontroller, STM32F030C8T6, STMicroelectronics
The STM32F030C8T6 microcontroller incorporates the high-performance Arm Cortex-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memory (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. The device offers standard communication interfaces (up to two I2Cs, up to two SPIs and up to six USARTs), one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer. The STM32F030C8T6 microcontroller operates in the -40 to +85 °C temperature range from a 2.4 to 3.6V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.
Features
- CRC calculation unit
- Reset and power management
- Clock management
- Calendar RTC with alarm and periodic wakeup from Stop/Standby
- Communication interfaces
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | LQFP-48 | |
| Assembly | SMD | |
| Version | flash | |
| Processor core | ARM Cortex M0 | |
| Core Size | 32 bit | |
| Clock frequency | 48 MHz | |
| Number of I/Os | 39 | |
| Memory size | 64 KB | |
| Data RAM Size | 8 KB | |
| Protocol | I2C, SPI, USART | |
| Voltage | 2.4-3.6 V | |
| Number of pins | 48 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| MSL | MSL 2 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
