M24256-BWMN6P | STMicroelectronics

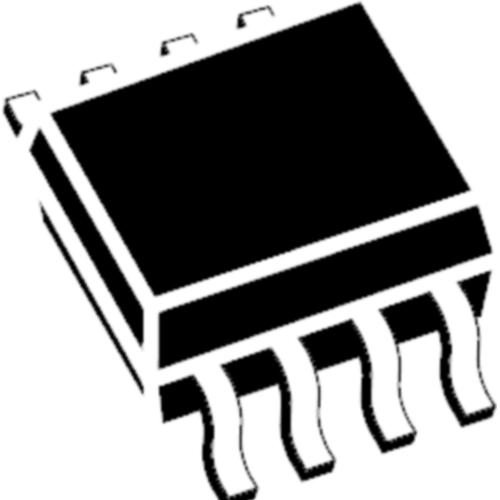

EEPROM 256 kbit, SOIC-8, M24256-BWMN6P
Order No.: 30S1154
EAN: 4099879150189
MPN:
M24256-BWMN6P
Not suitable for new designs
Unit Price (€ / pc.)
0.3927 € *
Available in 5 Days: 1,300 pcs. - if ordered today
Total Price:
19.64 € *
Price list
Quantity
Price per unit*
50 pcs.
0.3927 €
100 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale
EEPROM, M24256-BWMN6P, STMicroelectronics
The M24256-BWMN6P can operate with a supply voltage from 2.5 V to 5.5 V, the M24256-BR and M24256-DR can operate with a supply voltage from 1.8 V to 5.5 V, and the M24256-BF and M24256-DF can operate with a supply voltage from 1.7 V to 5.5 V. All these devices operate with a clock frequency of 1 MHz (or less), over an ambient temperature range of -40 °C / +85 °C.
Features
- Write protect of the whole memory array
- Enhanced ESD/Latch-Up protection
- More than 4 million Write cycles
- More than 200-years data retention
Technical specifications
| Enclosure | SOIC-8 | |
| Assembly | SMD | |
| Memory size | 256 kbit | |
| Voltage | 2.5-5.5 V | |
| Access time | 450 s | |
| Clock frequency | 1 MHz | |
| Technology | EEPROM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Customs tariff number | 85423275 |
| Original Packaging | Bar with 100 pieces |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
