LD1117S33CTR | STMicroelectronics

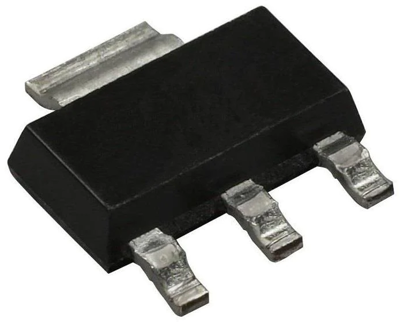

Voltage regulator, 3.3 VDC, 800 mA, positive, SOT-223, LD1117S33CTR
Order No.: 31S3261
EAN: 4099891633059
MPN:
LD1117S33CTR
Unit Price (€ / pc.)
0.0877 € *
Standard delivery time from the manufacturer is: 1 Week
Voltage regulator, LD1117S33CTR, STMicroelectronics
The LD1117S33CTR is a low drop voltage regulator able to provide up to 800 mA of output current. High efficiency is assured by NPN pass transistor. Only a very common 10 µF minimum capacitor is needed for stability. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 1 % at 25 °C.
Features
- Low dropout voltage
- Output current up to 800 mA
- Internal current and thermal limit
- Supply voltage rejection: 75 dB
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SOT-223 | |
| Version | fixed | |
| Number of Regulators | 1 | |
| Input voltage AC | 3.3-15 V | |
| Output voltage DC | 3.3 VDC | |
| Output current | 800 mA | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
