L78L12ACZ | STMicroelectronics

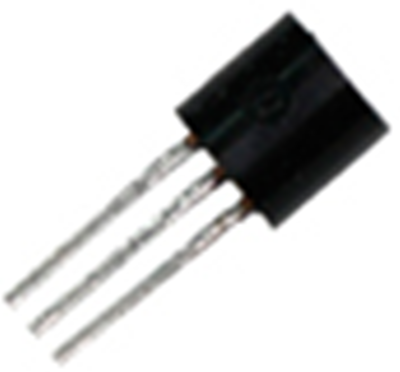

Voltage regulator, 12 VDC, 100 mA, positive, TO-92, L78L12ACZ
Order No.: 50S1350
EAN: 4099879101136
MPN:
L78L12ACZ
Unit Price (€ / pc.)
0.3332 € *
Available: 982 pcs.
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3332 €
50 pcs.
0.2404 €
250 pcs.
0.1999 €
1000 pcs.
0.1714 €
2500 pcs.
0.1499 €
*incl. VAT plus shipping costs
Subject to prior sale
Voltage regulator, L78L12ACZ, STM
The L78L12ACZ is a three-terminal positive regulator employ internal current limiting and thermal shutdown, making it essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. This device used as zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Features
- Short circuit protection
- No external components are required
- Output current up to 100 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| min. operating temperature | 0 °C | |
| Assembly | THT | |
| Output current | 100 mA | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 14-35 V | |
| Version | fixed | |
| Enclosure | TO-92 | |
| Polarity | positive |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Original Packaging | Bulk with 2,500 pieces |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
