L78L08ACZ | STMicroelectronics

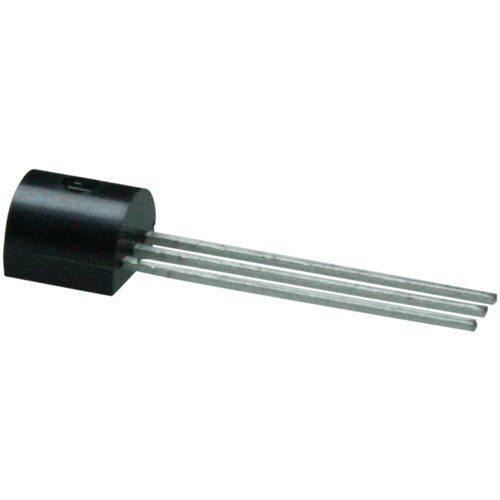

Voltage regulator, 8 VDC, 100 mA, positive, TO-92, L78L08ACZ
Order No.: 50S1222
EAN: 4099879101044
MPN:
L78L08ACZ
Unit Price (€ / pc.)
0.2404 € *
Available: 1,360 pcs.
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2404 €
50 pcs.
0.1714 €
250 pcs.
0.1428 €
1000 pcs.
0.1226 €
2500 pcs.
0.1083 €
*incl. VAT plus shipping costs
Subject to prior sale
Voltage regulator, L78L08ACZ, STM
The L78L08ACZ is a three-terminal positive regulator employ internal current limiting and thermal shutdown, making it essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. This device used as zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.
Features
- Output current up to 100 mA
- Short-circuit protection
- No external components are required
- Thermal overload protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-92 | |
| Version | fixed | |
| Number of Regulators | 1 | |
| Input voltage AC | 10-30 V | |
| Output voltage DC | 8 VDC | |
| Output current | 100 mA | |
| Polarity | positive | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 2,500 pieces |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
