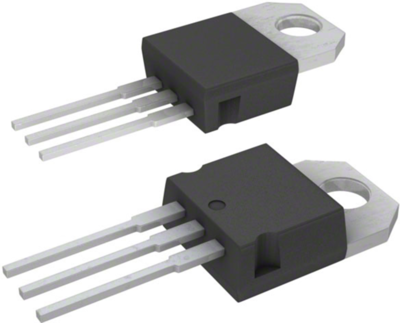

L7815CV TO220 | STMicroelectronics
Voltage regulator, 15 VDC, 1.5 A, positive, TO-220, L7815CV TO220
Order No.: 50S1650
EAN: 4099879101303
MPN:
L7815CV TO220
Unit Price (€ / pc.)
0.6664 € *
Available: 1,730 pcs.
Total Price:
0.67 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6664 €
25 pcs.
0.5355 €
100 pcs.
0.4522 €
250 pcs.
0.3927 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale
Voltage regulator, L7815CV TO220, STM
The L7815CV TO220 is a three-terminal positive regulator. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. If adequate heat sink is provided, it can deliver over 1 A output current. Although designed primarily as fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
Features
- Output current up to 1.5 A
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of Regulators | 1 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | 0 °C | |
| Assembly | THT | |
| Output current | 1.5 A | |
| Output voltage DC | 15 VDC | |
| Version | fixed | |
| Enclosure | TO-220 | |
| Polarity | positive |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 50 pieces |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
