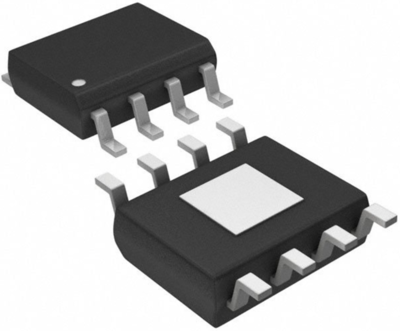

L5973D | STMicroelectronics
Voltage regulators, 2.5 V, 1.235 kV, 35 V
Order No.: 41S1066
EAN: 4099879090089
MPN:
L5973D
Unit Price (€ / pc.)
2.2491 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
10 pcs.
2.1777 €
25 pcs.
2.0944 €
100 pcs.
2.0230 €
250 pcs.
1.8802 €
*incl. VAT plus shipping costs
Subject to prior sale
Switching regulator, L5973D, STMicroelectronics
The L5973D is a step down monolithic power switching regulator with a minimum switch current limit of 2.5 A so it is able to deliver more than 2 A DC current to the load depending on the application conditions. The device uses an internal P-channel D-MOS transistor as switching element to minimize the size of the external components. An internal oscillator fixes the switching frequency at 250 kHz. Pulse by pulse current limit with the internal frequency modulation offers an effective constant current short circuit protection.
Features
- Protection against feedback disconnection
- Thermal shutdown
- Low dropout operation: 100 % duty cycle
- Zero load current operation
- Adjustable soft-start time
Applications
- Consumer: STB, DVD, TV, VCR, car radio, LCD monitors
- Networking: XDSL, modems, DC-DC modules
- Computer: printers, audio/graphic cards, optical storage, hard disk drive
- Industrial: chargers, car battery, DC-DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage AC | 4.4-36 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Output current | 2.5 A | |
| Enclosure | HSOP-8 | |
| Input voltage | 36 V |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Customs tariff number | 85423390 |
| Country of origin | TH |
| Original Packaging | Bar with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
