L5972D | STMicroelectronics

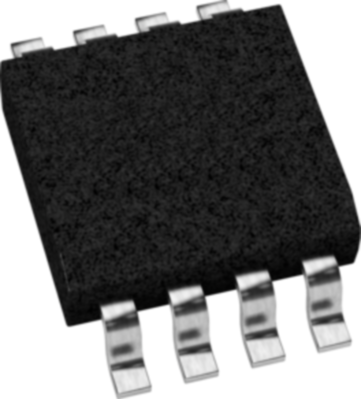

IC, L5972D
Order No.: 41S1064
EAN: 4099879090065
MPN:
L5972D
Unit Price (€ / pc.)
3.3201 € *
Available: 150 pcs.
Total Price:
3.32 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3201 €
10 pcs.
2.9155 €
100 pcs.
2.5585 €
200 pcs.
2.4633 €
800 pcs.
2.3086 €
*incl. VAT plus shipping costs
Subject to prior sale
Switching regulator, L5972D, STMicroelectronics
The L5972D is a step down monolithic power switching regulator with a minimum switch current limit of 2 A so it is able to deliver more than 1.5 A DC current to the load depending on the application conditions. The device uses an internal P-Channel D-MOS transistor as switching element to minimize the size of the external components. Pulse by pulse current limit with the internal frequency modulation offers an effective constant current short circuit protection.
Features
- Protection against feedback disconnection
- Thermal shutdown
- Low dropout operation: 100 % duty cycle
- Zero load current operation
Applications
- Consumer: STB, DVD, TV, VCR, car radio, LCD monitors
- Networking: XDSL, modems, DC-DC modules
- Computer: printers, audio/graphic cards, optical storage, hard disk drive
- Industrial: chargers, car battery, DC-DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Output current | 2 A | |
| Input voltage | 36 V | |
| Input voltage AC | 4.4-36 V | |
| Enclosure | SO-8 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 3 |
| Original Packaging | Bar with 100 pieces |
| Country of origin | QU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
