ULN2803A | STMicroelectronics

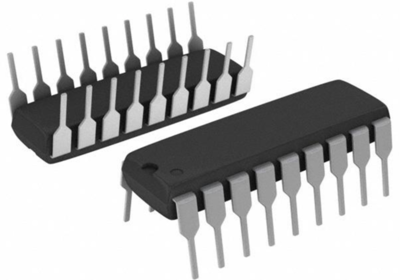

Bipolar junction transistor, NPN, 500 mA, 50 V, THT, PDIP-18, ULN2803A
Unit Price (€ / pc.)
1.7850 € *
Available: 650 pcs.
Available in 10 days: 89,780 pcs. - if ordered today
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.2733 €
100 pcs.
1.0948 €
*incl. VAT plus shipping costs
Subject to prior sale
Darlington transistor, ULN2803A, STMicroelectronics
The ULN2803A contains eight Darlington transistors with common emitters and integral suppression diodes for inductive loads.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 150 °C | |
| Rated current | 500 mA | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Min DC gain | 1000 mA | |
| max.voltage between collector and emitter Vceo | 50 V | |
| Collector current | 500 mA | |
| Saturation voltage | 1.3 V | |
| Version | NPN | |
| Enclosure | PDIP-18 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 20 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
